UL 10C Listed 90-Minute Steel Fire Door (Commercial Standard)
UL 10C LISTED • IBC 2021 COMPLIANT
UL 10C Listed 90-Minute Steel Fire Door (Commercial Standard)
The UL 10C Listed 90-Minute Steel Fire Door is our standard commercial-grade solution designed specifically for the North American market. Fully tested and certified by Underwriters Laboratories to UL 10C standards, it ensures compliance with Steel Door Institute - SDI and NFPA 80 and NFPA252 requirements. This door is the go-to choice for general contractors, architects and property developers working on office buildings, retail centers, mixed-use developments and public assembly facilities where 90-Minute fire rating is required by code.
Product Highlights
✓ UL 10C certified, 90-Minute fire rating
✓ 14-gauge galvanized steel construction
✓ High-density Rock wool core or Honeycomb core or Polystyrene core
✓ Factory pre-hung with UL listed hardware
✓ UL10C,UL10B,NFPA252,NFPA80 compliant
✓ Single & double door configurations
✓ Custom sizes & finishes available
✓ Direct factory pricing
⏱ Quick Response • Factory Direct Delivery • Free Preliminary Quote
UL 10C Certified • 90-Min Fire Rating
Why Choose Our Fire-Rated Steel Doors
Three pillars that set us apart from US distributors and generic suppliers
Factory-Direct Pricing
Skip the distributor markup. Buy directly from the manufacturer and save 20–40% on your project cost. 15 years of experience, 500,000+ doors annual capacity — reliable bulk delivery you can count on.
Full Range UL/CE Ratings
From 20-minute to 3-hour ratings, all certified to UL 10C / NFPA 252 standards. WHI labels shipped with every door. One supplier covers every opening rating requirement in your project — no need to source from multiple vendors.
Quick Quote
For standard configurations and complete specifications, our team strives to provide a preliminary quote within 20 minutes.
METAL DOOR SPECIFICATIONS
Our commercial metal doors are constructed of the highest grade steel and with the following specifications:
- 1-3/4″ Thick, non-handed design with reversible hinge plates
- A40 Galvanized Steel
- Gray primer painted with baked on two stage epoxy resin.
- 18 Gauge Steel Face Sheets
- High-density Rock wool core or Honeycomb core or Polystyrene core
- Hinge and Lock Edge seams “continuously” welded full length
- 12 Gauge Closer Reinforcement (18″ X 6″)
- 16 Gauge 161 Lock Prep. or 14 Gauge 86 Lock Prep
- 16 Gauge Flush Top Channel / Inverted Bottom Channel
- Square Door Edge
- 10 Gauge Hinge Reinforcement
Fire Ratings Explained
Choose the right UL fire rating for your application — all certified to UL 10C / NFPA 252
20 min
UL Rating: 1/3 hr
Corridors, office partitions, non-rated walls requiring smoke control.
45 min
UL Rating: 3/4 hr
1-hour fire wall openings, stairwells, hotel guest room corridors.
60 min
UL Rating: 1 hr
1-hour fire barriers, exit enclosures, vertical shaft separations.
90 min
UL Rating: 1-1/2 hr
1.5-hour fire walls, hazardous area enclosures, industrial separations.
3 hr
UL Rating: 3 hr
3-hour fire walls, high-hazard occupancy, severe fire exposure areas.
NON-FIRERATED
All ratings come with WHI certification labels affixed to each door. Verify authenticity online via WHI directory.
Door Sizes (All doors = 1-3/4″ thickness)
6′8″ Height
| Door Call Size | Nominal Width | Nominal Height |
|---|---|---|
| 2068 | 2′0″ (24 inch) | 6′8″ (80 inch) |
| 2468 | 2′4″ (28 inch) | 6′8″ (80 inch) |
| ⭐️2668 | 2′6″ (30 inch) | 6′8″ (80 inch) |
| 2868 | 2′8″ (32 inch) | 6′8″ (80 inch) |
| 21068 | 2′10″ (34 inch) | 6′8″ (80 inch) |
| 3468 | 3′4″ (40 inch) | 6′8″ (80 inch) |
| 3668 | 3′6″ (42 inch) | 6′8″ (80 inch) |
| 3868 | 3′8″ (44 inch) | 6′8″ (80 inch) |
| 4068 | 4′0″ (48 inch) | 6′8″ (80 inch) |
7′0″ Height
| Door Call Size | Nominal Width | Nominal Height |
|---|---|---|
| 2070 | 2′0″ (24 inch) | 7′0″ (84 inch) |
| 2470 | 2′4″ (28 inch) | 7′0″ (84 inch) |
| ⭐️2670 | 2′6″ (30 inch) | 7′0″ (84 inch) |
| 2870 | 2′8″ (32 inch) | 7′0″ (84 inch) |
| 21070 | 2′10″ (34 inch) | 7′0″ (84 inch) |
| 3470 | 3′4″ (40 inch) | 7′0″ (84 inch) |
| 3670 | 3′6″ (42 inch) | 7′0″ (84 inch) |
| 3870 | 3′8″ (44 inch) | 7′0″ (84 inch) |
| 4070 | 4′0″ (48 inch) | 7′0″ (84 inch) |
8′0″ Height
| Door Call Size | Nominal Width | Nominal Height |
|---|---|---|
| 2080 | 2′0″ (24 inch) | 8′0″ (96 inch) |
| 2480 | 2′4″ (28 inch) | 8′0″ (96 inch) |
| ⭐️2680 | 2′6″ (30 inch) | 8′0″ (96 inch) |
| 2880 | 2′8″ (32 inch) | 8′0″ (96 inch) |
| 21080 | 2′10″ (34 inch) | 8′0″ (96 inch) |
| 3480 | 3′4″ (40 inch) | 8′0″ (96 inch) |
| 3680 | 3′6″ (42 inch) | 8′0″ (96 inch) |
| 3880 | 3′8″ (44 inch) | 8′0″ (96 inch) |
| 4080 | 4′0″ (48 inch) | 8′0″ (96 inch) |
Configuration Options
Build your door with these customizable options — all factory-prepped for easy installation
Frame Type
/
Panel Styles
Welded
Frame Type
Knocked Down (KD)
Frame Type

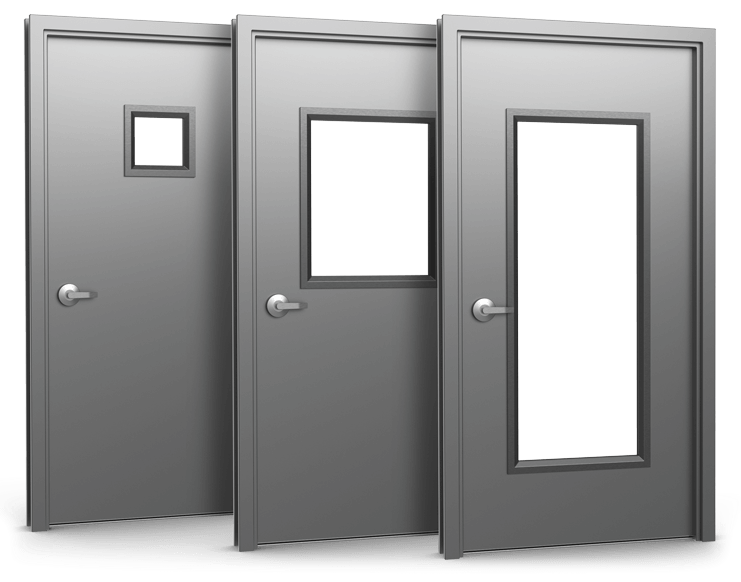

Vision Lite
With glass window

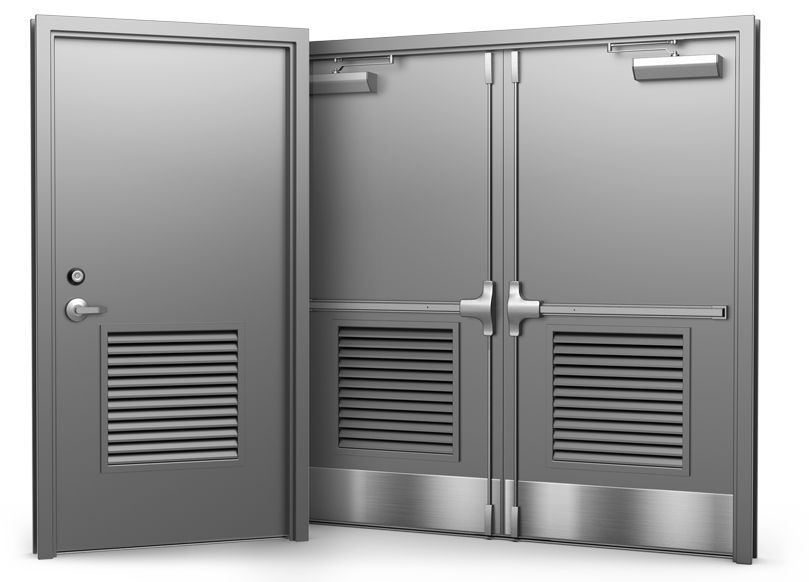

Louvered
Ventilation grille
Swing Direction & Handing
LH (Left Hand)
Hinges on left, swings in
RH (Right Hand)
Hinges on right, swings in
LHR (Left Hand Reverse)
Hinges on left, swings out
RHR (Right Hand Reverse)
Hinges on right, swings out
Hardware Prep
Hinge Mortise Prep
Lock Body Prep
Door Closer Prep
Panic Device Prep
Seals & Accessories
Complete your fire door assembly with UL-listed accessories — one-stop solution
Floor Stop
ANSI/BHMA Grade 1 certified floor stop built. fully compliant with NFPA 80, ADA, and California Prop 65.
Threshold
Aluminum/saddle threshold, adjustable height, fire-rated gasketing.
Door Sweep
Bottom seal with neoprene insert, smoke and draft control.
Intumescent Seal
Fire-activated expanding seal, perimeter gasketing for smoke control.
Rain Drip / Canopy
Exterior door weather protection, aluminum hood with drip edge.
Kick Plate
Stainless steel or brass kick plate, 8″/10″/12″ heights available.
Smoke Seal
UL-listed smoke and draft control gasketing, perimeter installation.
Hinges & Closers
UL-listed spring hinges, ball-bearing hinges, and door closers.
Detailed Product Description
Technical Features
- Fire rating: 90 minutes (UL 10C)
- Door leaf thickness: 1-3/4"
- Steel gauge: 16 gauge (face), 14 gauge (frame)
- Sound transmission class: STC 32
- Pressure rating: +/- 15 PSF
- Finish: galvanized, powder coat options
Construction & Fire Performance
Built from 16-gauge hot-dip galvanized steel with a fully welded frame and high-density non-combustible rock wool core, this door provides 180 minutes of fire integrity and insulation. The steel leaf features reinforced edge construction to prevent warping under high heat, while intumescent seals around the frame expand at 200°C to create an airtight smoke barrier. It has been tested for both positive and negative pressure conditions to ensure performance in real-world fire scenarios.
Configuration Options
- Standard Core: 45kg/m³ high-density rock wool core
- Configurations: Single door (up to 4' x 8'), Double door (up to 8' x 8'), Pairs with astragal seal
- Vision Lite: Optional 1/4" wire glass or ceramic vision panel in various sizes
Frame & Hardware
All doors come factory pre-hung in a 16-gauge galvanized steel frame with reinforced strike plates.
Standard UL certified hardware package includes 3 heavy-duty ball-bearing hinges, adjustable door closer with delayed action, and UL listed lock set with lever handle. Hardware finishes available in satin chrome, brass, and powder coat.
Certification & Compliance
- UL 10C certified, file number R41930 and R41931.
- Meets UL10C UL10B NFPA252 NFPA80 requirements
- WHI certified for Canadian market
Applications & Target Buyers
Applications: Office buildings, retail centers, mixed-use developments, public buildings, schools, hospitals, commercial corridors.
Recommended Buyers: General contractors, commercial developers, architects, fire door distributors, building material importers in US and Canada.
Frequently Asked Questions
Common questions from buyers, contractors, and distributors
Send Your Project Specs
Tell us your project requirements — door sizes, fire ratings, hardware, quantities, and destination port. Our team will respond with a detailed quote within 24 hours.
Quick Quote Checklist: For the fastest response, include: ① Quantity & door sizes (W×H) ② Fire rating required (20/45/60/90 min or 3hr) ③ Hardware schedule (hinges/lock/closer) ④ Glass/louver requirements ⑤ Finish color (RAL#) ⑥ Destination port & target delivery date.
