Fire Rated Steel Door
UL 10C LISTED • IBC 2021 COMPLIANT
Fire Rated Steel Door — Certified Protection for Every Building Type
In North America, fire rated steel doors are certified to UL 10C (positive pressure) or UL 10B (neutral pressure) standards, with ratings ranging from 20 minutes to 3 hours. The rating you need is determined by the fire-resistance rating of the wall the door is installed in, the occupancy type, and the local building code. Bastion manufactures fire rated steel doors across the full rating spectrum, each shipped with a WHI certification label and complete installation documentation.
Product Highlights
✓ Complete Rating Spectrum: 20, 45, 60, 90, and 180-minute fire ratings in one product family
✓ Dual Standard Certification: Tested to both ANSI/UL 10B (neutral pressure) and ANSI/UL 10C (positive pressure)
✓ Material Flexibility: Cold-rolled steel for interior applications; galvanized steel for moisture-prone or exterior installations
✓ Frame Compatibility: Available with hollow metal frames, masonry frames, or drywall frames to match wall construction type
✓ Hardware Flexibility: Compatible with mortise locks, cylindrical locks, panic devices, automatic operators, and access control systems
✓ Project Support: Dedicated fire-door specialists provide code consultation, submittal packages, and scheduling
✓ Dual Standard Certification: Tested to both ANSI/UL 10B (neutral pressure) and ANSI/UL 10C (positive pressure)
✓ Material Flexibility: Cold-rolled steel for interior applications; galvanized steel for moisture-prone or exterior installations
✓ Frame Compatibility: Available with hollow metal frames, masonry frames, or drywall frames to match wall construction type
✓ Hardware Flexibility: Compatible with mortise locks, cylindrical locks, panic devices, automatic operators, and access control systems
✓ Project Support: Dedicated fire-door specialists provide code consultation, submittal packages, and scheduling
⏱ Quick Response • Factory Direct Delivery • Free Preliminary Quote
UL 10C Certified • 90-Min Fire Rating
Why Choose Our Fire-Rated Steel Doors
Three pillars that set us apart from US distributors and generic suppliers
Factory-Direct Pricing
Skip the distributor markup. Buy directly from the manufacturer and save 20–40% on your project cost. 15 years of experience, 500,000+ doors annual capacity — reliable bulk delivery you can count on.
Full Range UL/CE Ratings
From 20-minute to 3-hour ratings, all certified to UL 10C / NFPA 252 standards. WHI labels shipped with every door. One supplier covers every opening rating requirement in your project — no need to source from multiple vendors.
Quick Quote
For standard configurations and complete specifications, our team strives to provide a preliminary quote within 20 minutes.
METAL DOOR SPECIFICATIONS
Our commercial metal doors are constructed of the highest grade steel and with the following specifications:
- 1-3/4″ Thick, non-handed design with reversible hinge plates
- A40 Galvanized Steel
- Gray primer painted with baked on two stage epoxy resin.
- 18 Gauge Steel Face Sheets
- High-density rock wool core
- Hinge and Lock Edge seams “continuously” welded full length
- 12 Gauge Closer Reinforcement (18″ X 6″)
- 16 Gauge 161 Lock Prep. or 14 Gauge 86 Lock Prep
- 16 Gauge Flush Top Channel / Inverted Bottom Channel
- Square Door Edge
- 10 Gauge Hinge Reinforcement
Fire Ratings Explained
Choose the right UL fire rating for your application — all certified to UL 10C / NFPA 252
20 min
UL Rating: 1/3 hr
Corridors, office partitions, non-rated walls requiring smoke control.
45 min
UL Rating: 3/4 hr
1-hour fire wall openings, stairwells, hotel guest room corridors.
60 min
UL Rating: 1 hr
1-hour fire barriers, exit enclosures, vertical shaft separations.
90 min
UL Rating: 1-1/2 hr
1.5-hour fire walls, hazardous area enclosures, industrial separations.
3 hr
UL Rating: 3 hr
3-hour fire walls, high-hazard occupancy, severe fire exposure areas.
NON-FIRERATED
All ratings come with WHI certification labels affixed to each door. Verify authenticity online via WHI directory.
Door Sizes (All doors = 1-3/4″ thickness)
6′8″ Height
| Door Call Size | Nominal Width | Nominal Height |
|---|---|---|
| 2068 | 2′0″ (24 inch) | 6′8″ (80 inch) |
| 2468 | 2′4″ (28 inch) | 6′8″ (80 inch) |
| ⭐️2668 | 2′6″ (30 inch) | 6′8″ (80 inch) |
| 2868 | 2′8″ (32 inch) | 6′8″ (80 inch) |
| 21068 | 2′10″ (34 inch) | 6′8″ (80 inch) |
| 3468 | 3′4″ (40 inch) | 6′8″ (80 inch) |
| 3668 | 3′6″ (42 inch) | 6′8″ (80 inch) |
| 3868 | 3′8″ (44 inch) | 6′8″ (80 inch) |
| 4068 | 4′0″ (48 inch) | 6′8″ (80 inch) |
7′0″ Height
| Door Call Size | Nominal Width | Nominal Height |
|---|---|---|
| 2070 | 2′0″ (24 inch) | 7′0″ (84 inch) |
| 2470 | 2′4″ (28 inch) | 7′0″ (84 inch) |
| ⭐️2670 | 2′6″ (30 inch) | 7′0″ (84 inch) |
| 2870 | 2′8″ (32 inch) | 7′0″ (84 inch) |
| 21070 | 2′10″ (34 inch) | 7′0″ (84 inch) |
| 3470 | 3′4″ (40 inch) | 7′0″ (84 inch) |
| 3670 | 3′6″ (42 inch) | 7′0″ (84 inch) |
| 3870 | 3′8″ (44 inch) | 7′0″ (84 inch) |
| 4070 | 4′0″ (48 inch) | 7′0″ (84 inch) |
8′0″ Height
| Door Call Size | Nominal Width | Nominal Height |
|---|---|---|
| 2080 | 2′0″ (24 inch) | 8′0″ (96 inch) |
| 2480 | 2′4″ (28 inch) | 8′0″ (96 inch) |
| ⭐️2680 | 2′6″ (30 inch) | 8′0″ (96 inch) |
| 2880 | 2′8″ (32 inch) | 8′0″ (96 inch) |
| 21080 | 2′10″ (34 inch) | 8′0″ (96 inch) |
| 3480 | 3′4″ (40 inch) | 8′0″ (96 inch) |
| 3680 | 3′6″ (42 inch) | 8′0″ (96 inch) |
| 3880 | 3′8″ (44 inch) | 8′0″ (96 inch) |
| 4080 | 4′0″ (48 inch) | 8′0″ (96 inch) |
Configuration Options
Build your door with these customizable options — all factory-prepped for easy installation
Frame Type
/

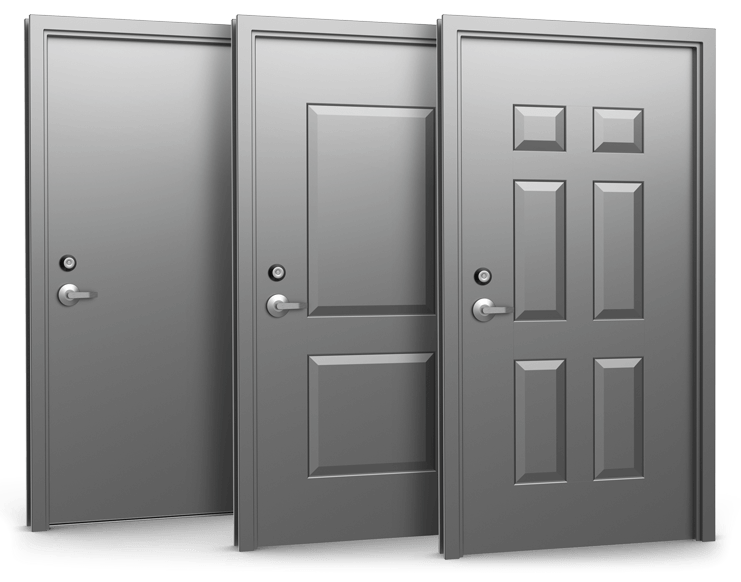

Panel Styles

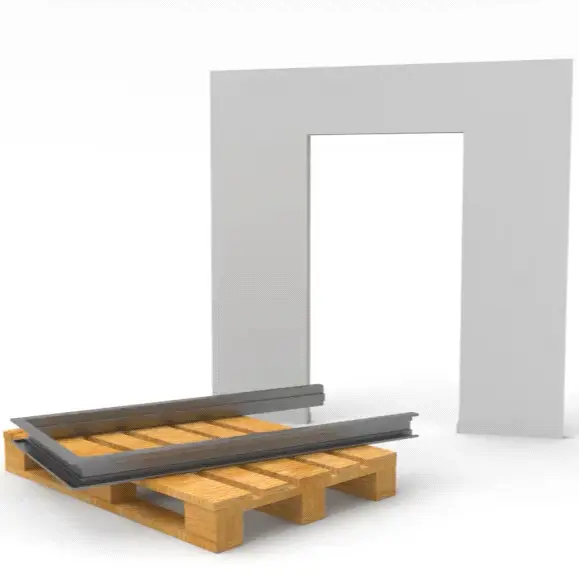

Welded
Frame Type

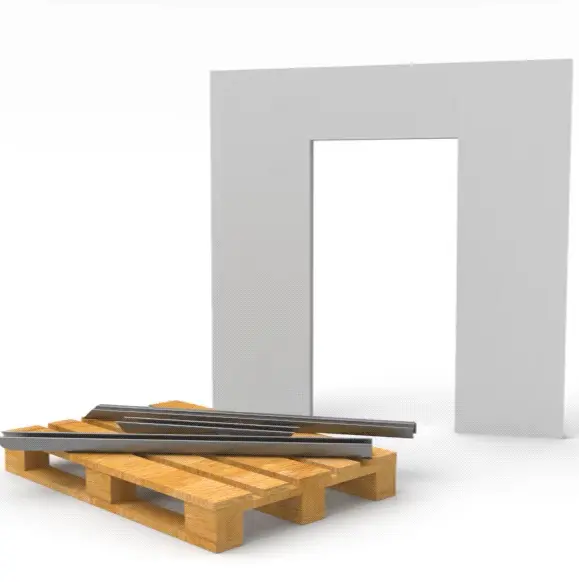

Knocked Down (KD)
Frame Type

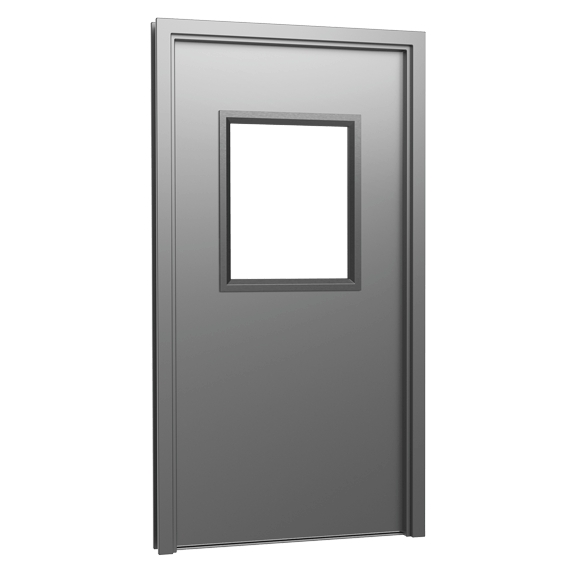

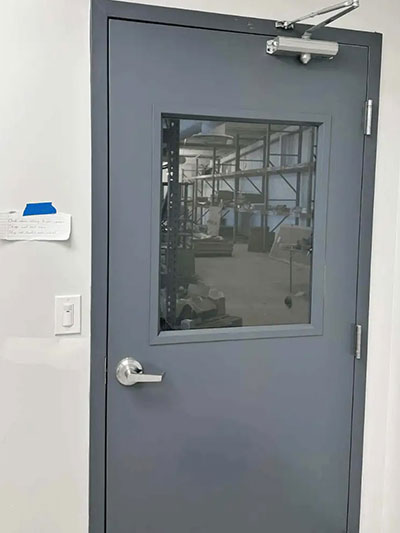

Vision Lite
With glass window

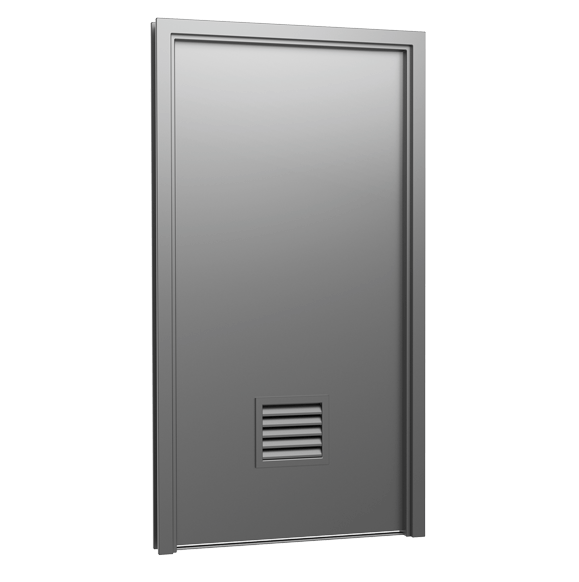

Louvered
Ventilation grille
Swing Direction & Handing

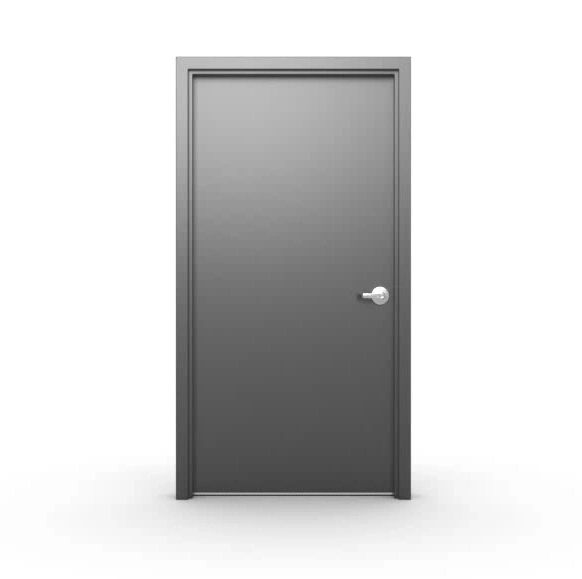

LH (Left Hand)
Hinges on left, swings in
RH (Right Hand)
Hinges on right, swings in

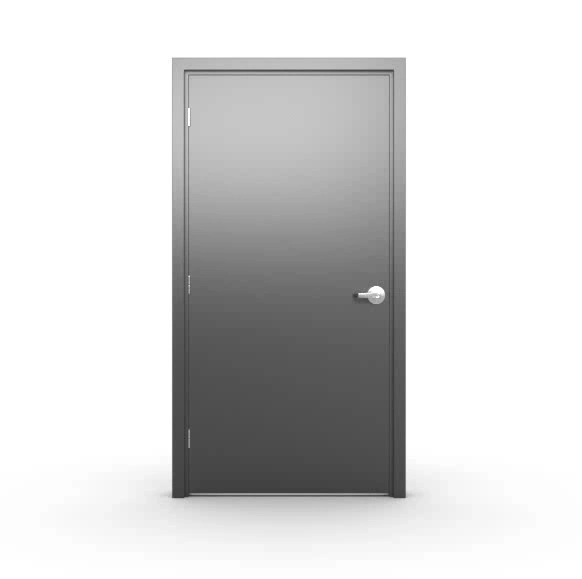

LHR (Left Hand Reverse)
Hinges on left, swings out

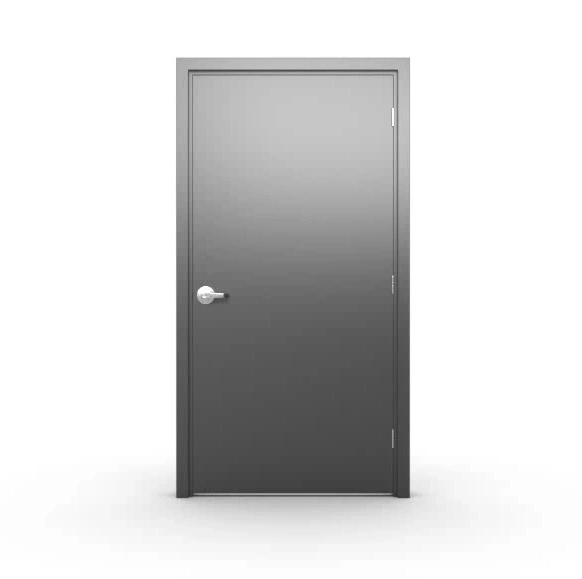

RHR (Right Hand Reverse)
Hinges on right, swings out
Hardware Prep

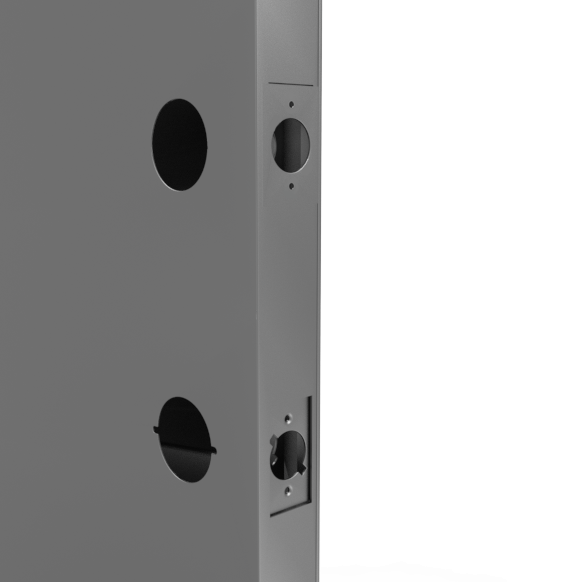

Hinge Mortise Prep
Lock Body Prep

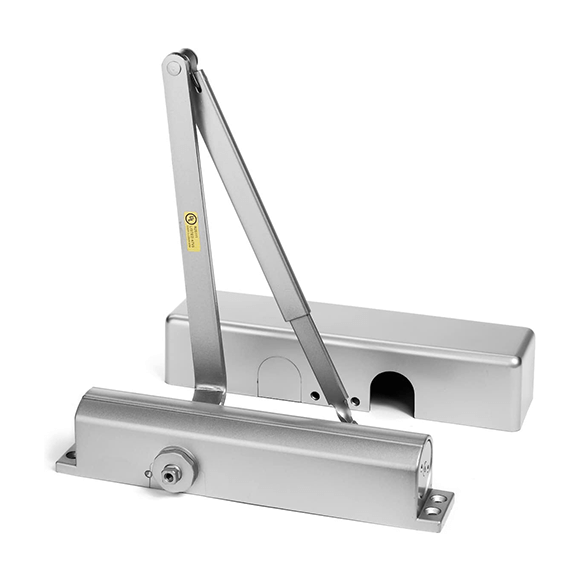

Door Closer Prep

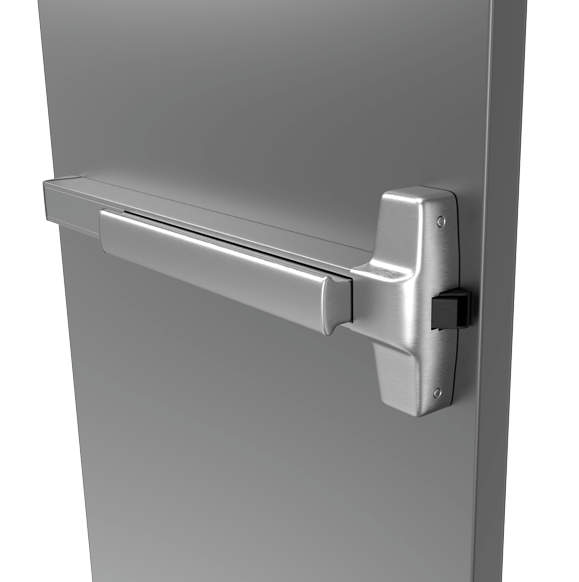

Panic Device Prep
Seals & Accessories
Complete your fire door assembly with UL-listed accessories — one-stop solution

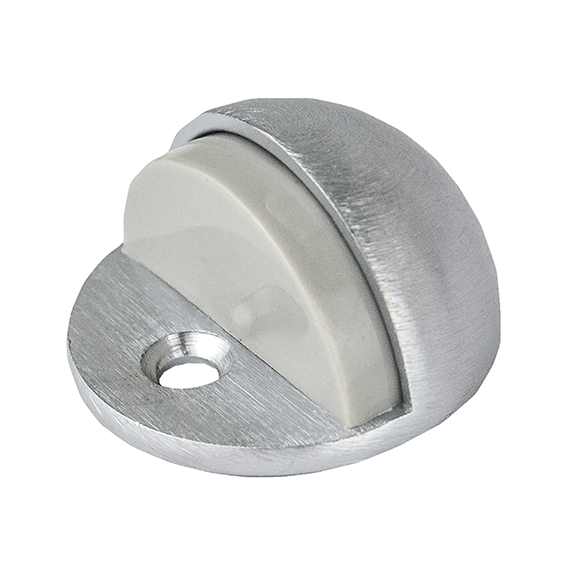

Floor Stop
ANSI/BHMA Grade 1 certified floor stop built. fully compliant with NFPA 80, ADA, and California Prop 65.

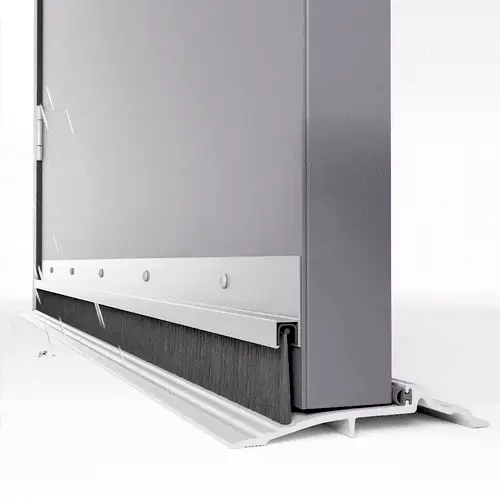

Threshold
Aluminum/saddle threshold, adjustable height, fire-rated gasketing.
Door Sweep
Bottom seal with neoprene insert, smoke and draft control.

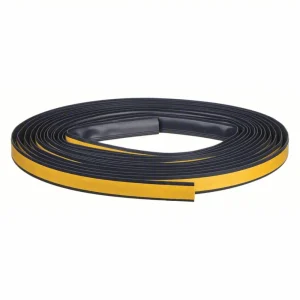

Intumescent Seal
Fire-activated expanding seal, perimeter gasketing for smoke control.

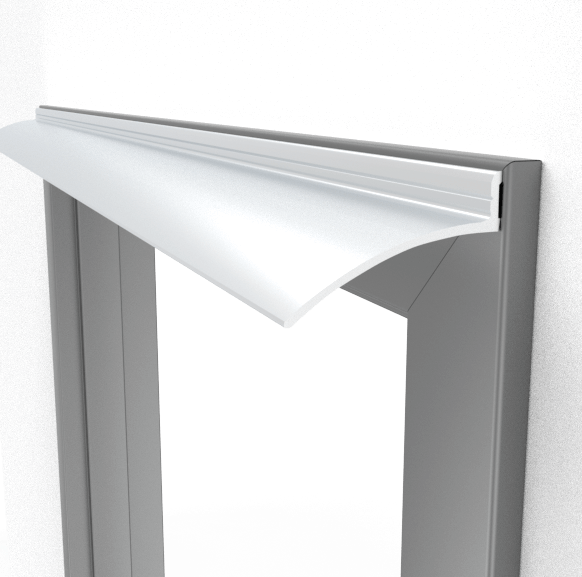

Rain Drip / Canopy
Exterior door weather protection, aluminum hood with drip edge.
Kick Plate
Stainless steel or brass kick plate, 8″/10″/12″ heights available.
Smoke Seal
UL-listed smoke and draft control gasketing, perimeter installation.

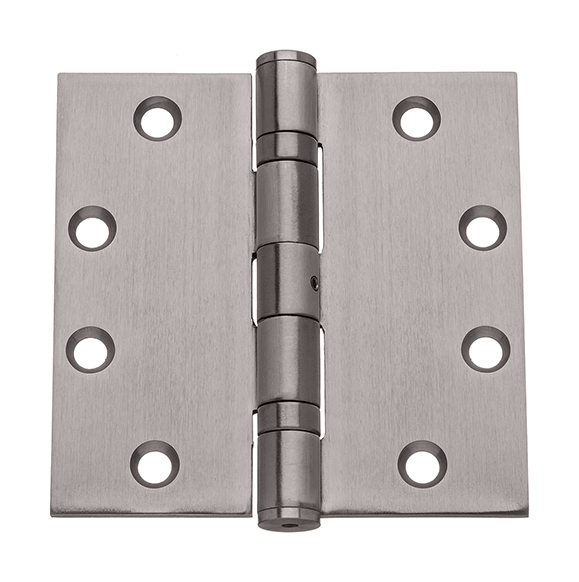

Hinges & Closers
UL-listed spring hinges, ball-bearing hinges, and door closers.
Detailed Product Description
Technical Features
- Fire Rating : 20 / 45 / 60 / 90 / 180 minutes
- Test Standards : ANSI/UL 10B, ANSI/UL 10C, CAN/ULC-S104
- Material : Cold-rolled or galvanized steel
- Gauge : 0 ga. (standard), 18 ga. (heavy-duty), 16 ga. (industrial)
- Core : Honeycomb / polystyrene / mineral wool / acoustic
- Frame Types : Hollow metal, masonry, drywall, pressed steel
- Max Size : Up to 8'0" × 10'0" (special engineering)
Application
- Office Building : Complete range of ratings for every office application — from 20-minute smoke partitions to 90-minute exit corridors.
- Factory / Warehouse : Heavy-duty options for industrial fire walls and high-hazard occupancy separations with 3-hour ratings.
- Hospital : Full spectrum of fire ratings for healthcare facility life-safety compartments, from patient rooms to central plants.
- School : Code-compliant solutions for educational occupancies, from classroom doors to gymnasium and auditorium separations.
Frequently Asked Questions
Common questions from buyers, contractors, and distributors
Send Your Project Specs
Tell us your project requirements — door sizes, fire ratings, hardware, quantities, and destination port. Our team will respond with a detailed quote within 24 hours.
Quick Quote Checklist: For the fastest response, include: ① Quantity & door sizes (W×H) ② Fire rating required (20/45/60/90 min or 3hr) ③ Hardware schedule (hinges/lock/closer) ④ Glass/louver requirements ⑤ Finish color (RAL#) ⑥ Destination port & target delivery date.
